The ESD Monitoring Legal Cost Trap

The True Cost of Manual Inspection Routines in Electronics Manufacturing

In modern manufacturing environments characterized by a wide variety of product variants and small batch sizes, as well as in SMT production, process reliability is the decisive factor for quality, efficiency, and economic success. However, a look at ESD (electrostatic discharge) protection in many companies reveals a surprising picture: Audits and daily functional tests are often still based on stand-alone measuring devices, analog paper-based record-keeping, and manually maintained Excel spreadsheets.

At the time of initial purchase, existing, simple test equipment may seem like a cost-neutral option. However, anyone who analyzes the total cost of ownership in detail will quickly realize that manual ESD testing routines are an expensive process cost trap.

The Invisible Money Pit: Hidden Costs from Administrative Burdens

DIN EN 61340-5-1 requires the regular verification and documentation of the functionality of ESD protection devices. In a manual or only partially automated testing environment, this requirement results in ongoing, hidden personnel costs in day-to-day operations:

The Manual Data Entry Spiral

Before entering the EPA, employees must check their wrist grounding and footwear every day and sign off on the results on paper lists or at decentralized terminals. Each of these tasks costs valuable minutes per employee per day. Over the course of a year, this seemingly minor effort adds up to hundreds of unproductive work hours.

Audit Stress in Quality Management

When a customer audit or ISO/ESD recertification is coming up, the quality management department often begins a major search:

• Where are the signed test reports from the last few months?

• Are all the lists complete and legible?

• Which measurement corresponded to which workstation?

Consolidating, scanning, and verifying decentralized data ties up highly qualified engineers and technicians in purely administrative tasks.

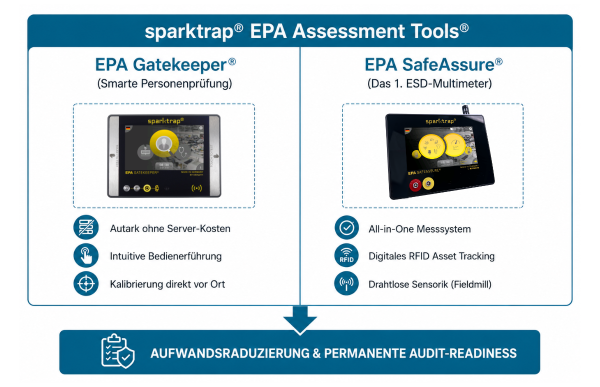

sparktrap® EPA Gatekeeper®: Smart Access and Identity Verification

The EPA Gatekeeper® is revolutionizing daily ESD personal testing:

• Zero Software OPEX: The system operates completely independently and requires no expensive server installations or recurring license fees. Up to 64 devices can be seamlessly networked.

• Guided Process & HALO Visibility: A 7-inch touchscreen intuitively guides employees through the measurement process, while the distinctive HALO lighting effect immediately and unambiguously displays the test result, even from a distance.

• No downtime: Thanks to the innovative magnetic calibrator, annual calibration can be performed on-site in just a few minutes—without having to send the device in and without any downtime.

sparktrap® EPA SafeAssure®: The world's first ESD multimeter

For the regular verification of EPA equipment, EPA SafeAssure® replaces an entire suitcase full of individual devices:

• All-in-One Solution: All resistance measurements, field strength measurements, walk-through tests, and discharge time measurements (CPM) are handled by a single, highly integrated system.

• Digital RFID Asset Tracking: Tables, chairs, mats, or tools are simply scanned via RFID before measurement. The device automatically assigns the measurement results digitally to the respective piece of equipment.

• Instant evaluation according to standards: Integrated evaluation models (including DIN EN IEC 61340) analyze the data directly on the device.

Amortization begins on the first day

Those who focus solely on the upfront costs of insulated test equipment when it comes to ESD protection are cutting corners in the wrong place. The true costs do not arise from the purchase itself, but from daily operations—specifically, manual routines, error-prone documentation, and bureaucratic overhead.

State-of-the-art ESD measurement technology, such as our sparktrap® series, transforms outdated inspection processes into a streamlined, fully automated, and audit-ready workflow. It not only protects sensitive components from electrostatic discharge but, above all, preserves your company’s most valuable resource: your employees’ working time.
