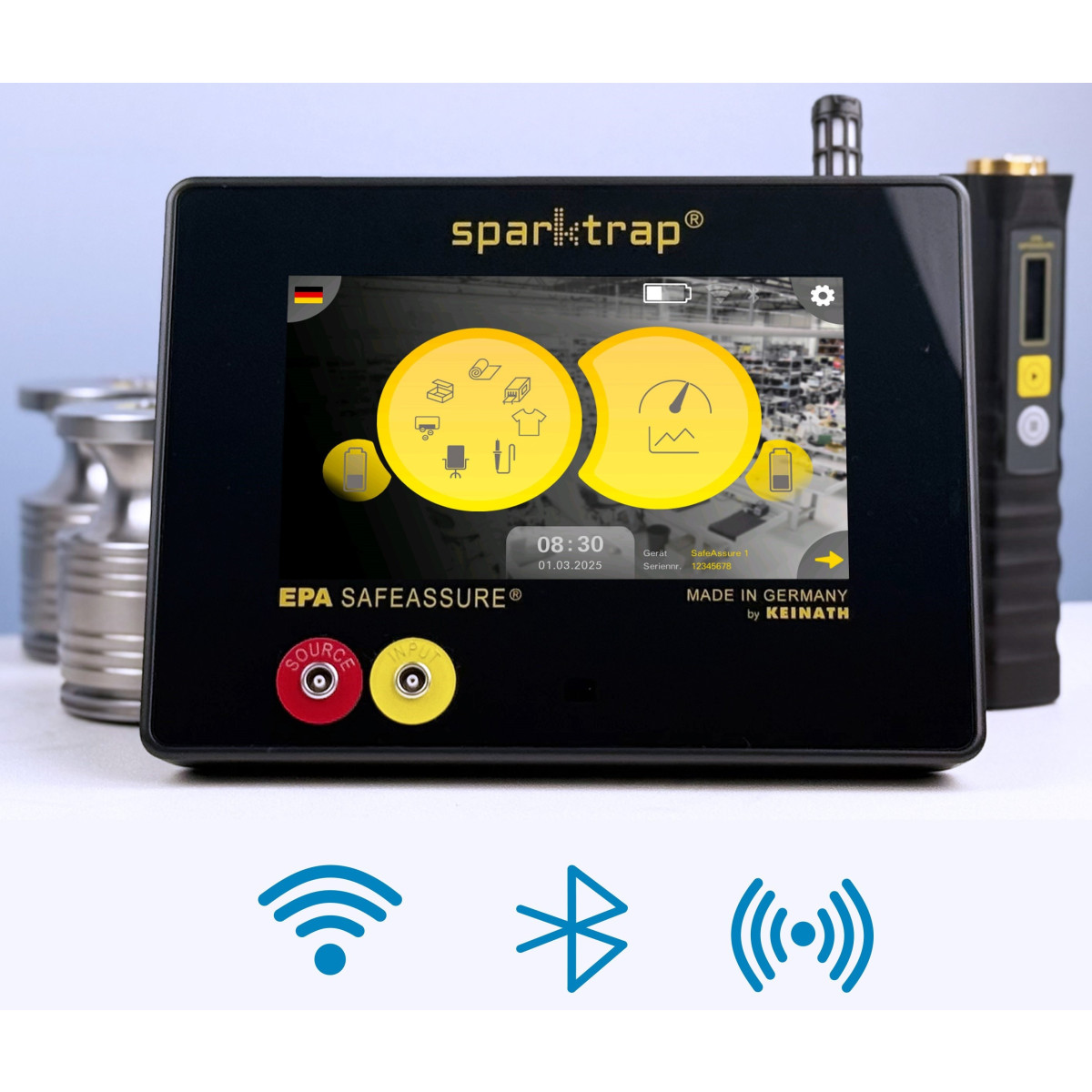

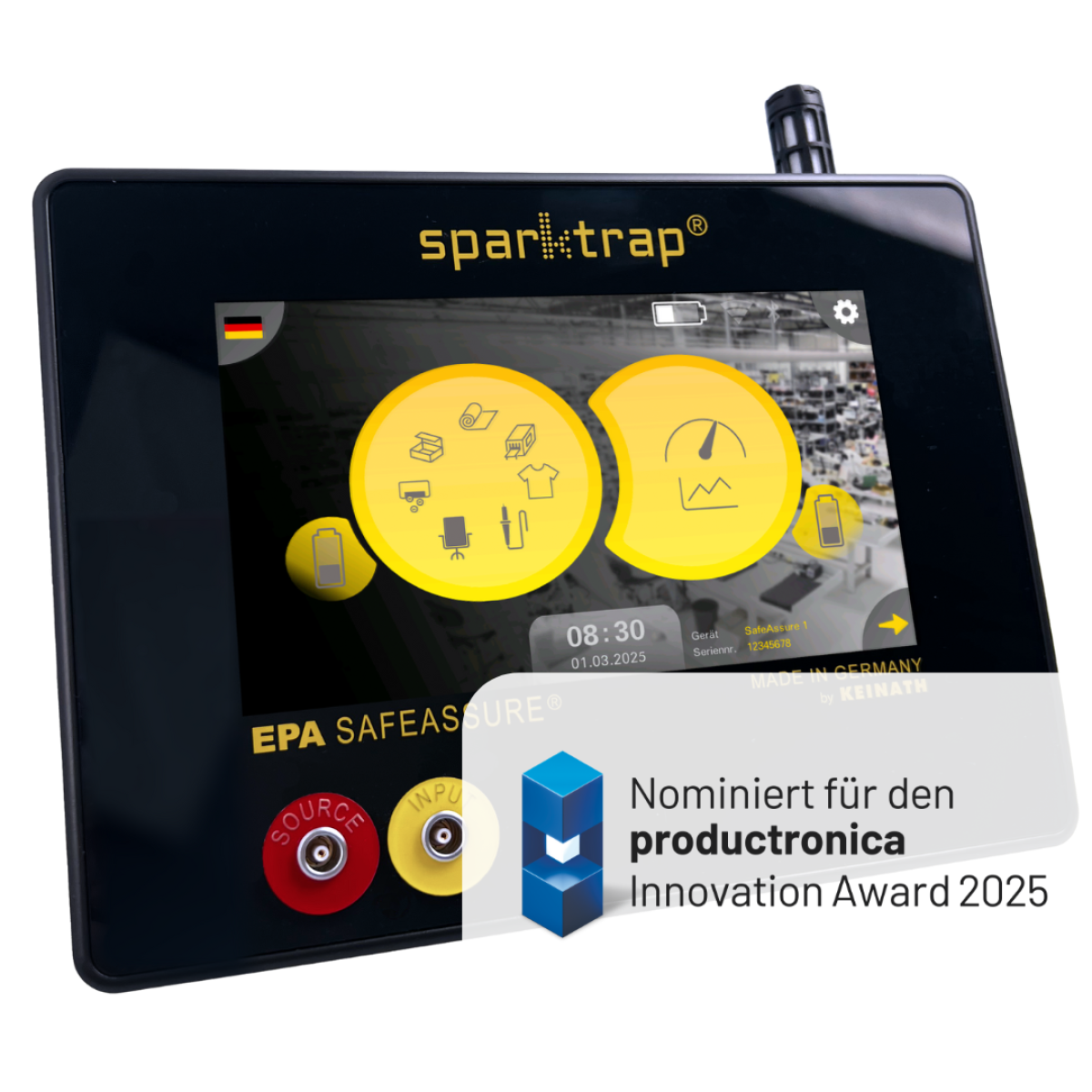

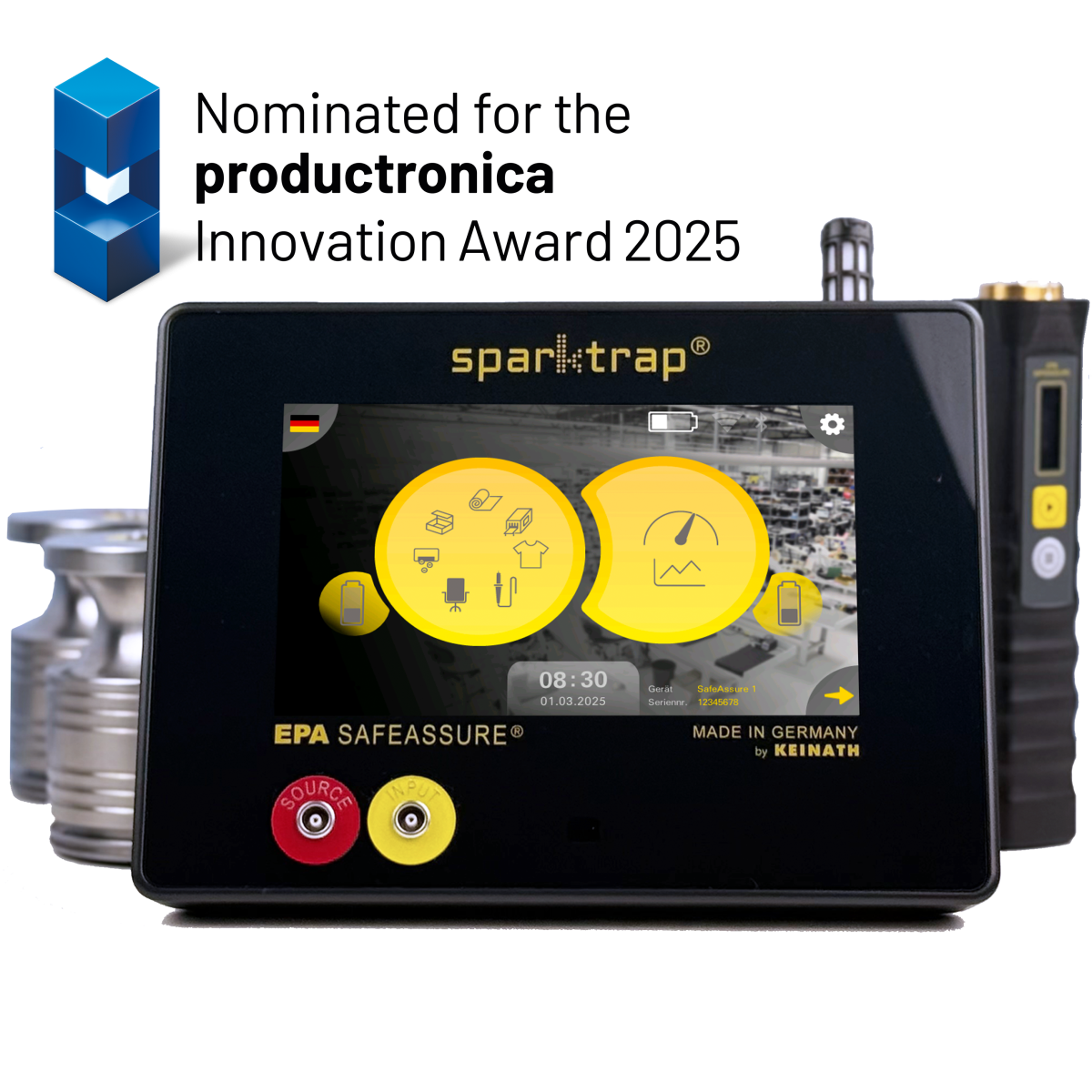

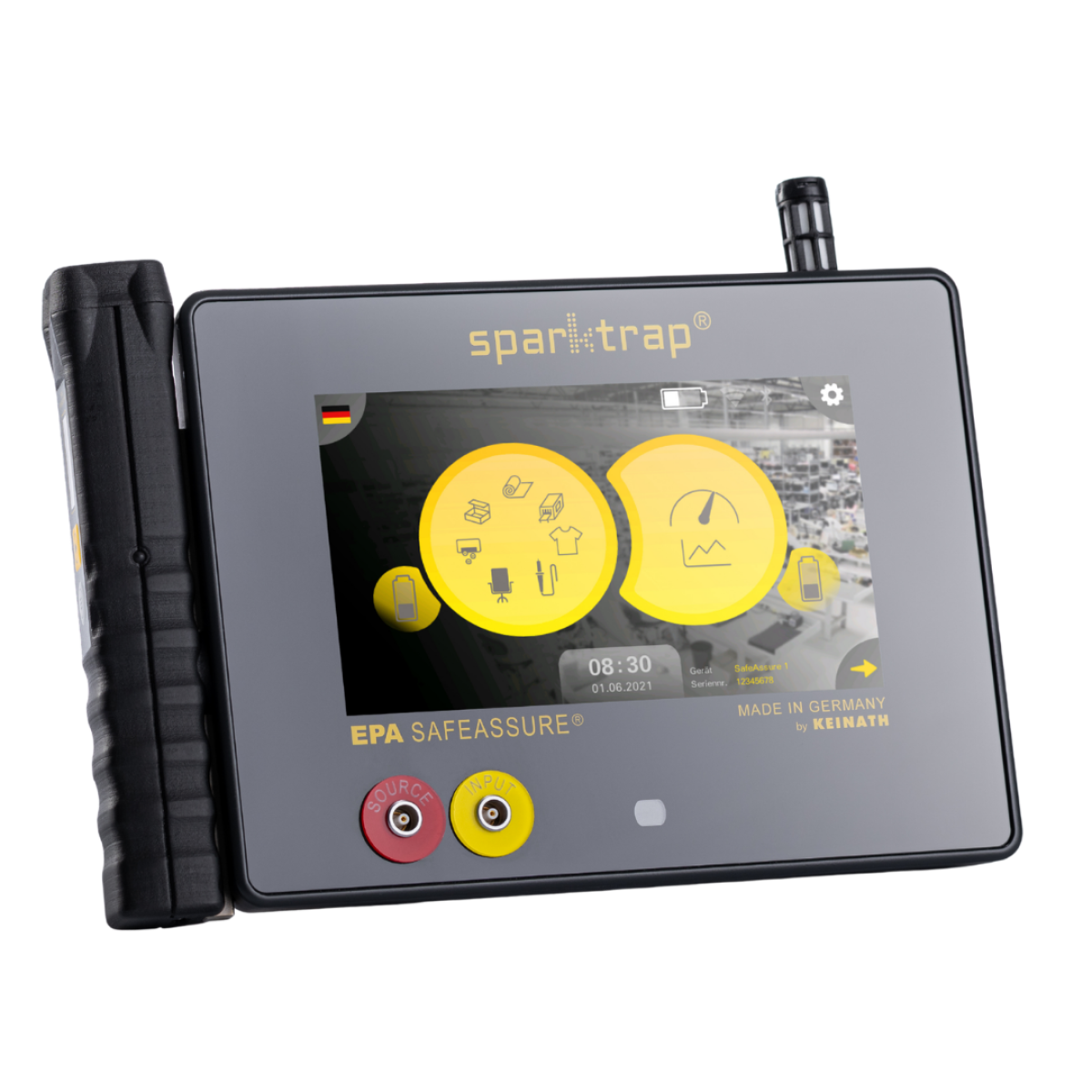

sparktrap® EPA SafeAssure®

The world's first ESD multimeter

Das All-in-One Set:

With EPA SafeAssure the ESD multimeter you get the complete solution for all ESD measurements, combined with an intuitive user interface that makes precise measurements faster and easier than ever before. Perfect for professional use in the laboratory and the EPA.

• Professional application for ESD managers
• Intuitive operation - easy to understand for everyone
• Fast and precise measurements

Thanks to integrated asset tracking, measurements can be assigned directly to a specific object. The device automatically compares the values with the standard specifications, provides a clear statement on conformity and documents all measurements in full.

The result: an all-round safe and comprehensible ESD measurement concept - well thought-out, practical and efficient!

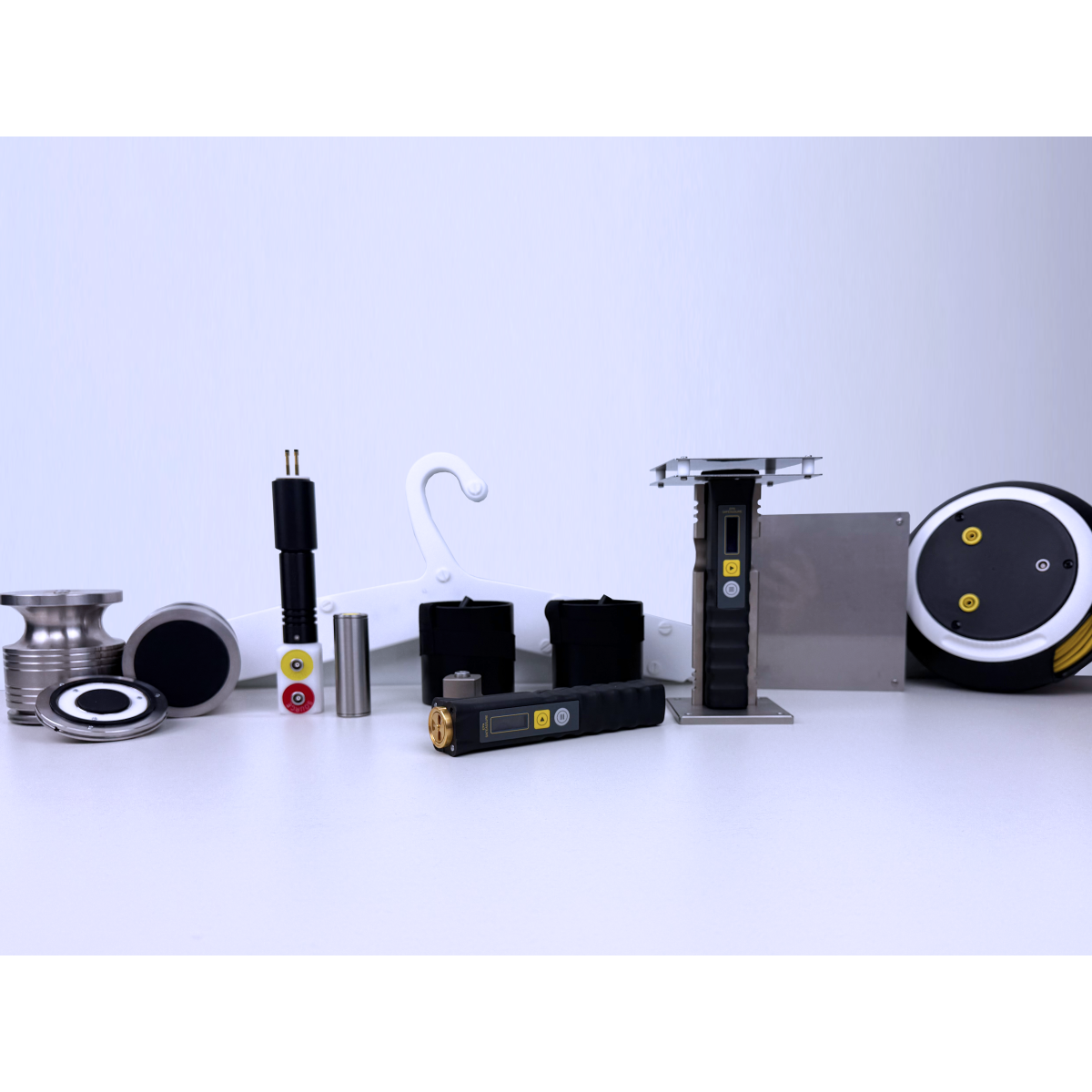

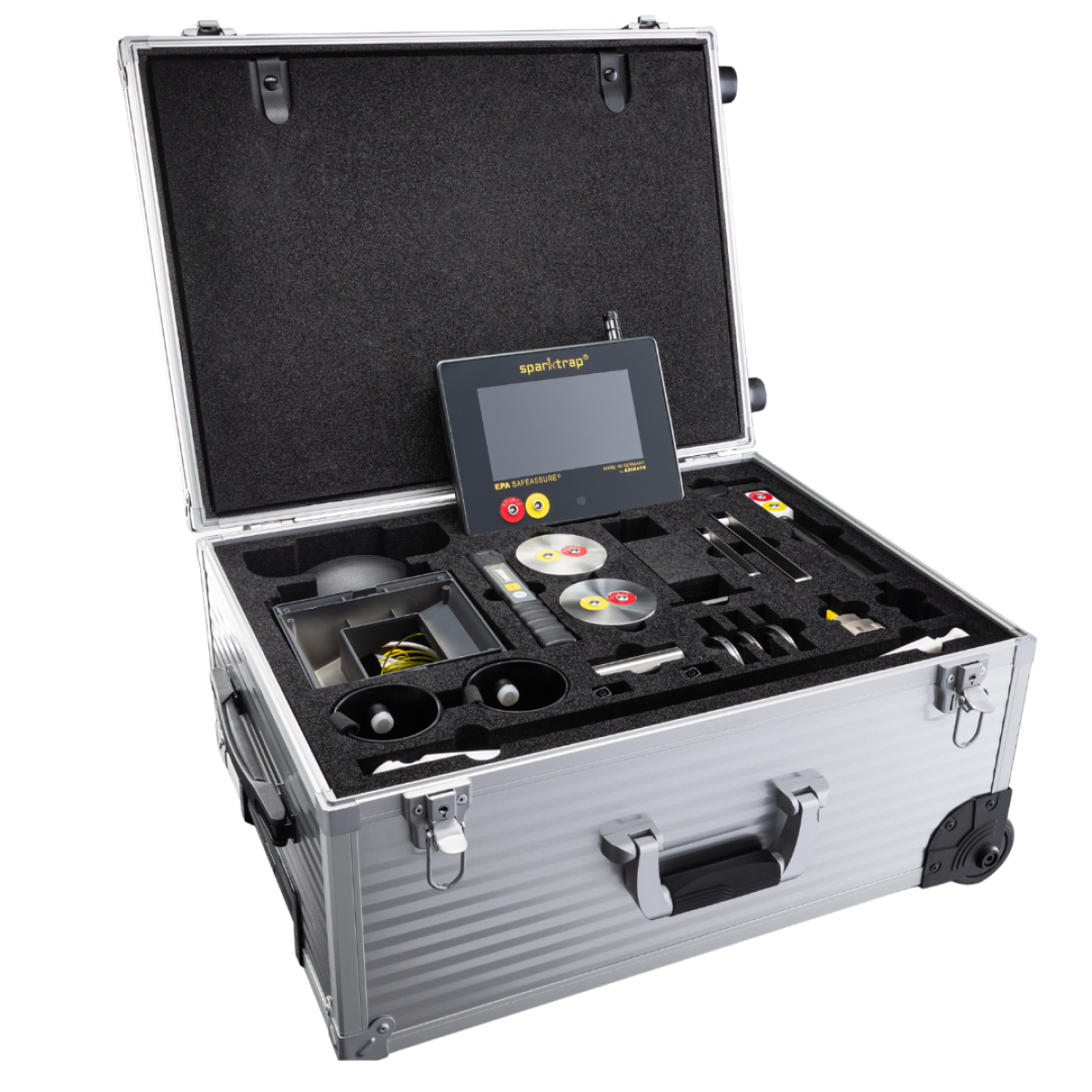

The all-in-one solution includes:

• EPA SafeAssure® measuring unit with high resistance meter. With base, temperature and humidity sensor, USB-C interface, and microSD slot.
• With wireless radio connection, RFID, and Wi-Fi interface
• Measuring electrode base body, including connections
• Electrode plates Cylindrical electrode & ring electrode
• Two-point electrode including measuring pins and conductive rubber pads, with movable protective cover and connections for measuring cables
• Bluetooth Fieldmill incl. distance sensor, LED light, cover cap
• Measuring head incl. 4 mm brush
• Hand electrode incl. 4 mm socket
• Charge Plate Monitor 150 x 150 mm
• Charge Plate Monitor 100 x 100 mm
• Stand for CPM and measuring head, including grounding connections
• PTFE coat hanger including two extensions
• Sleeve electrode including elastic band and 4 mm socket
• Asset tracking tool & self-adhesive asset tags
• USB power supply with cable
• Metal plate 30 x 30 cm
• Insulating plate 30 x 30 cm
• discharge time cable
• LEMO-Banane adapter cable
• Grounding cable Schuko
• Test cable
• LEMO connector
• 1.5 m measuring cable with LEMO connector / 1.5 m measuring cable with LEMO connector
• Connector for LEMO measuring cables
• Insulated crocodile clip with 10 mm DK and 4 mm banana plug socket
• 18 m cable reel with banana plug, practical swivel ring, and belt clip

In a few weeks we will start the official pre-order of EPA SafeAssure!

Find out more about the device at:

www.sparktrap.de
