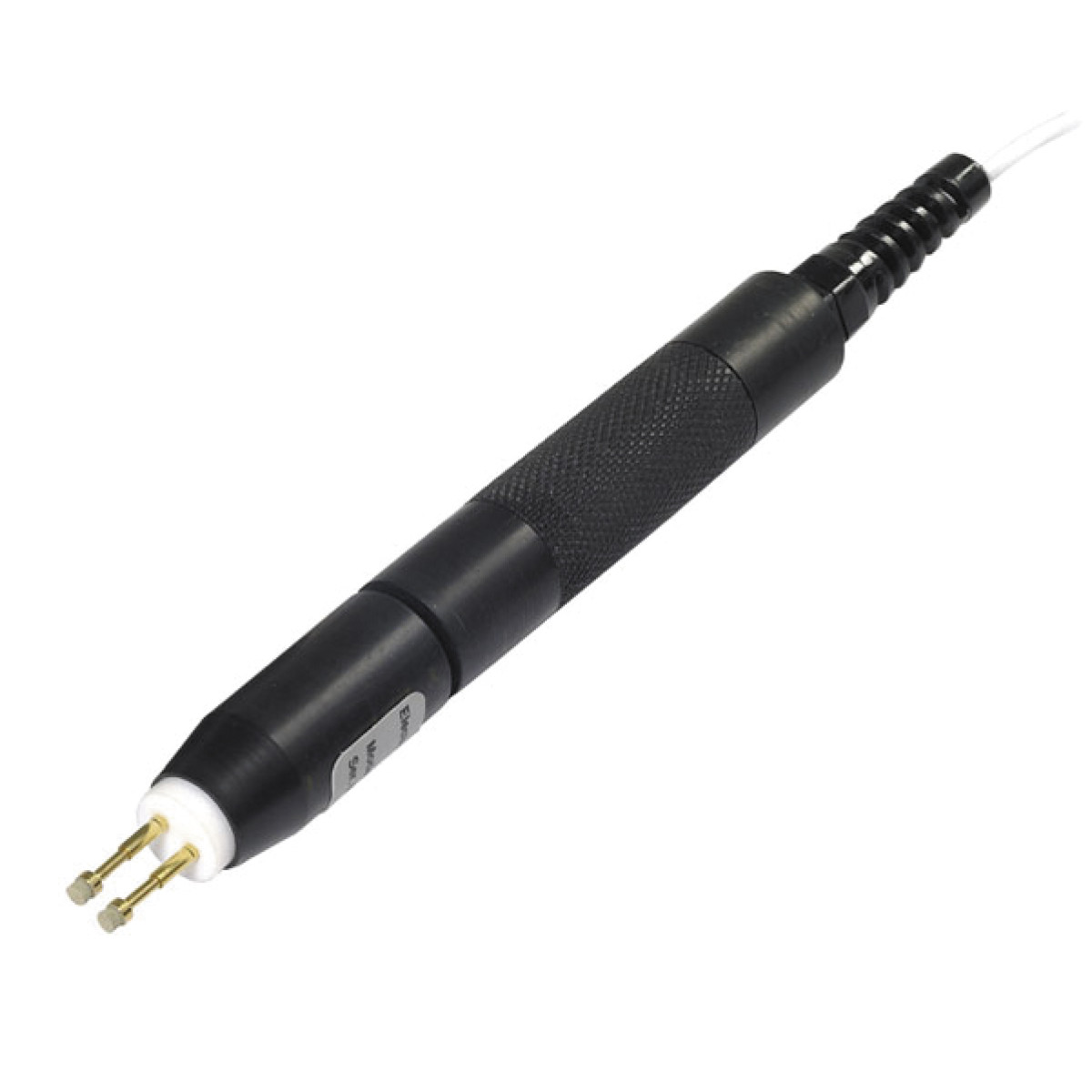

Model 840 Two-Point Electrode

The Model 840 Two-Point Electrode is no longer available and has been removed from our product range.

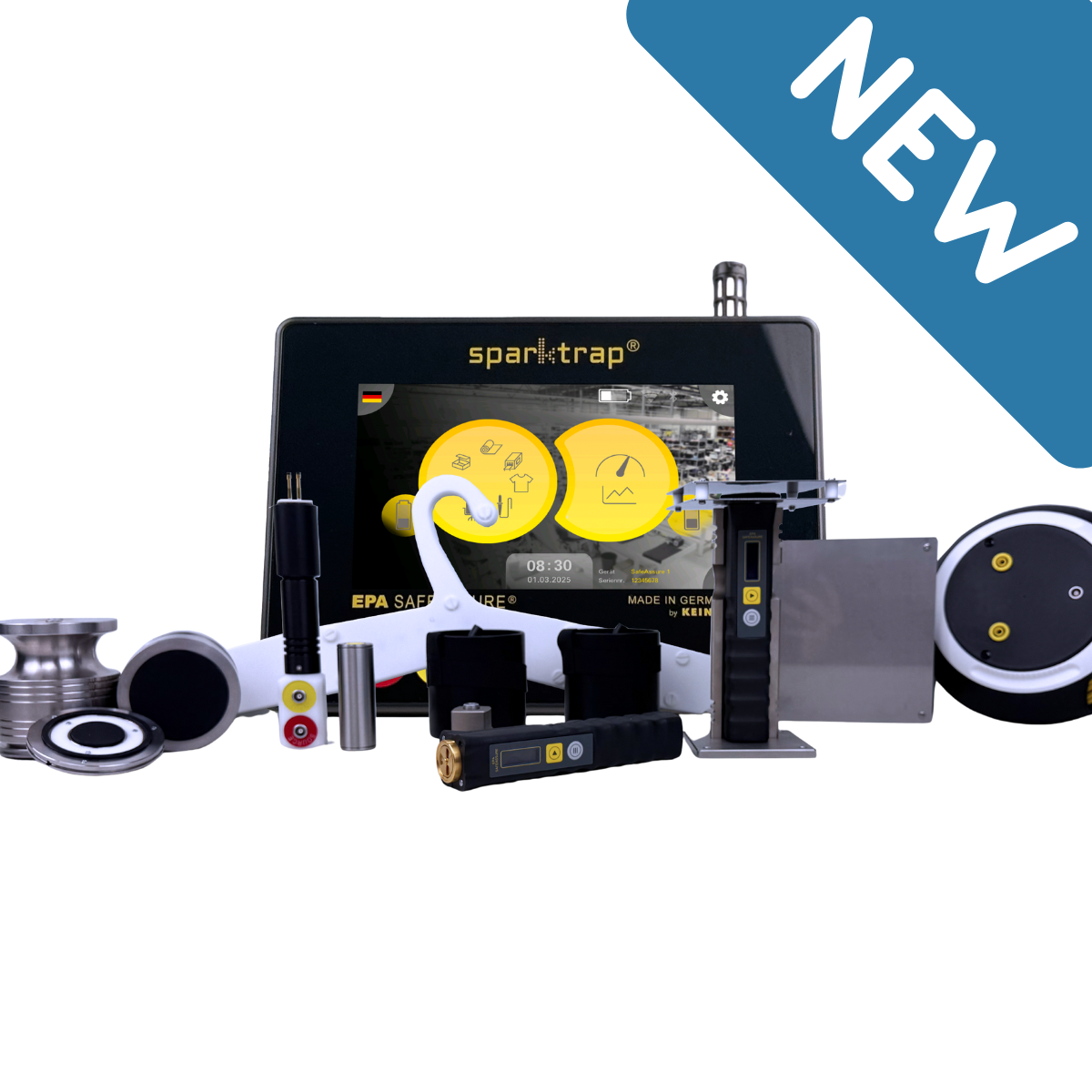

The requirements for modern ESD measurement technology have evolved significantly in recent years. For this reason, we have decided to discontinue the Model 840 Two-Point Electrode and instead focus on our own future-proof solution. Discover the all-in-one device for ESD measurements!

Click here for the ESD multimeter

For surface resistance measurements on small packaging (e.g. SMD blister tapes, conveyor belts, thermoforming trays, etc.)

According to IEC DIN EN 61340-2-3
Even pressure due to spring-loaded electrode pins
Measurements in wells possible
Interchangeable measuring head with BNC connection
Conductive contact rubber with contact transition resistance
Contact rubber hardness: 55 Shore A
Total resistance of the electrode
Spring force approx. 3.5 N
Diameter: 22 mm
Total length with handle: 220 mm
Electrode gap: 6.4 mm
Contact rubber: Ø 4 mm
Connection: 4 mm banana plug
