KBT 2000 - KEINATH walk test 2000

The KBT 2000 is no longer available and has been removed from our product range.

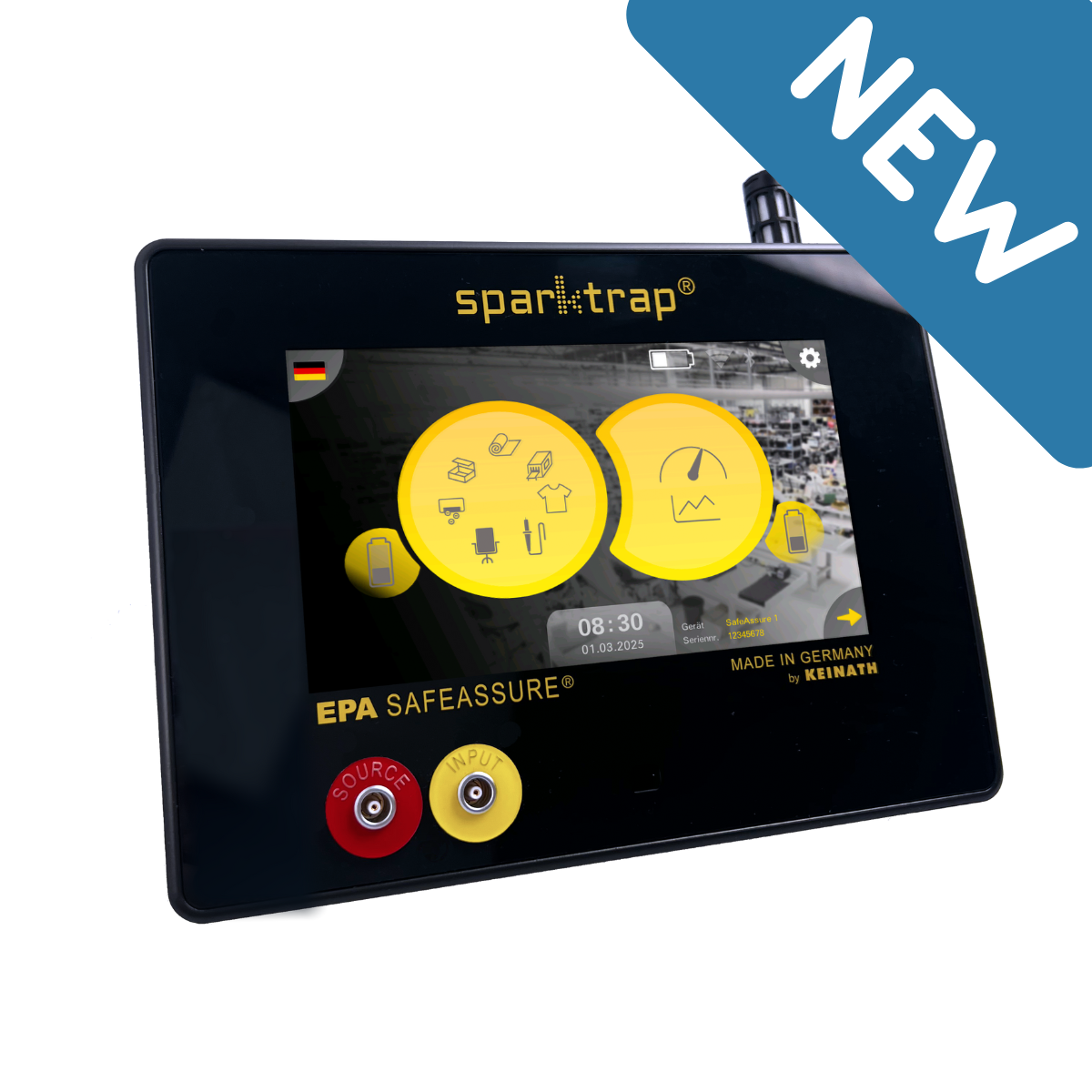

The requirements for modern ESD measurement technology have evolved significantly in recent years. For this reason, we have decided to discontinue the KBT 2000 and instead focus on our own future-proof solution. Discover the all-in-one device for ESD measurements!

Click here for the ESD multimeter

Walk-through test for measuring personal charge in accordance with IEC DIN EN 61340-4-5, electric field meter with 21-digit LED dot display for measuring electrostatic charges. The KBT 2000 is used to measure personal charge in accordance with DIN EN 61340-4-5. Data from a walk-through test can be transferred to a PC or laptop using the standard accessories, where it can be evaluated and saved as a graph. Online measurements are possible with a connected PC or laptop.

Further features:
Measuring amplifier based on the field mill-influence principle. User-friendly one-button operation. Analog output 1 V with Ri > 1 kOhm proportional to the measured field strength.

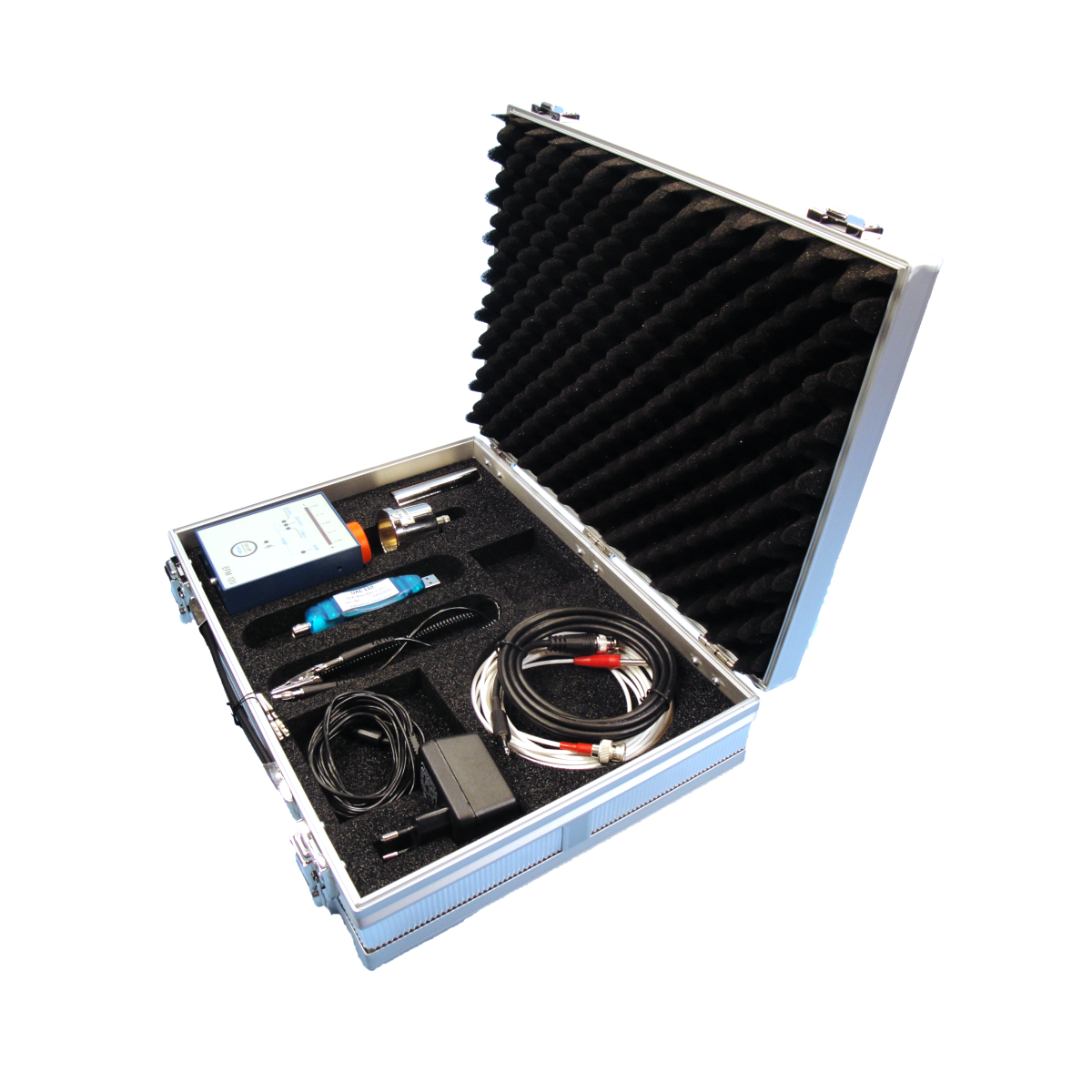

Scope of delivery

• EFM 120 - Electric field meter
• Analog/digital converter UAC 110
• Complete data acquisition and evaluation software
• Voltage measuring head MK 11 (+/- 2 kV, Ri > 1015 Ohm) with BNC connection
• Built-in 7.2 V NiMH battery pack
• Plug-in power supply unit and charger
• Measuring cable 5 m teflon insulated with banana plug and BNC plug
• Analog output connection cable 3m (jack plug to BNC)
• Hand electrode according to DIN EN 61340-4-5
• Earthing cable 2 m with crocodile clip
• Ready case made of aluminum with foam insert
• Operating instructions
